CSV Vibration Motor

Home>Products>Products>2 Pole>A-204

Products

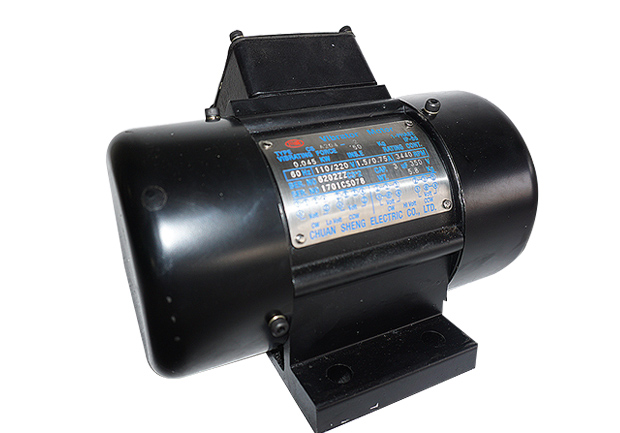

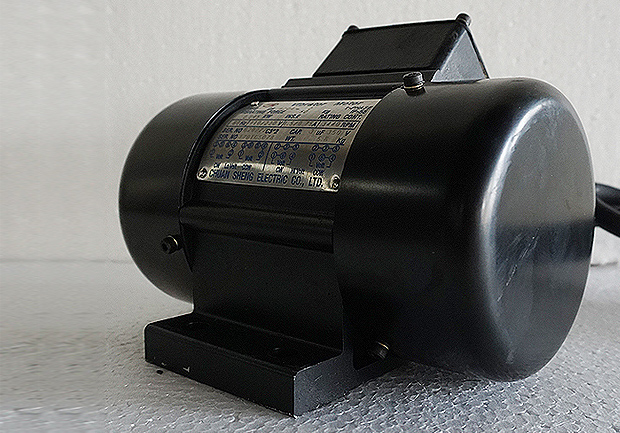

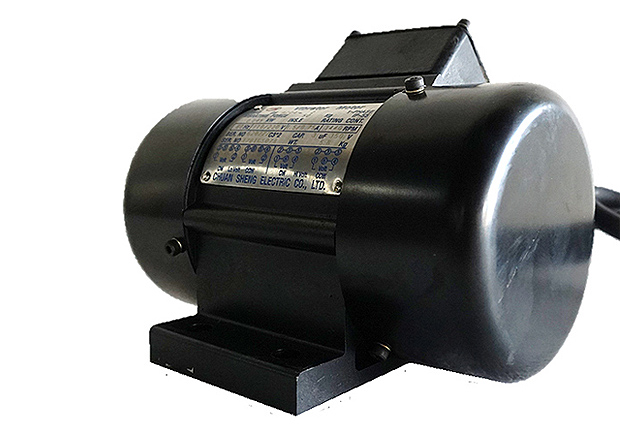

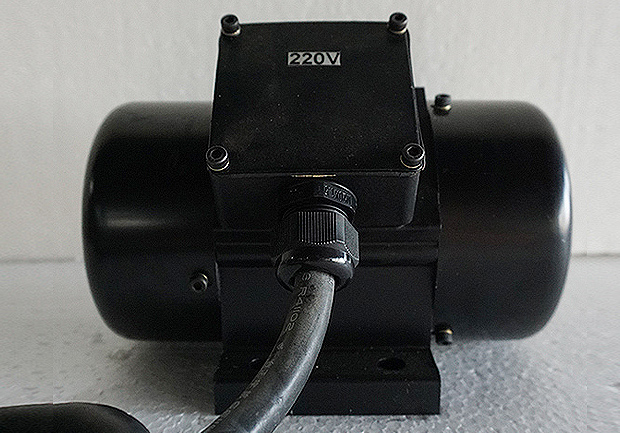

A-204

Product Use

  • Preventing coagulation in materials storage bins and feeder conveyance pipes used by manufacturers.
  • Deal with powder and other tiny granular material in containers to load maximize capacity.
  • Dislodging dust and partialities into collectors to control air pollution.
  • Non-destructive vibration testing machines used in the computer and electronics industries.
  • Vibrating topple over concrete forms.
  • De-bubbling epoxy resin products such as PCBs. etc.

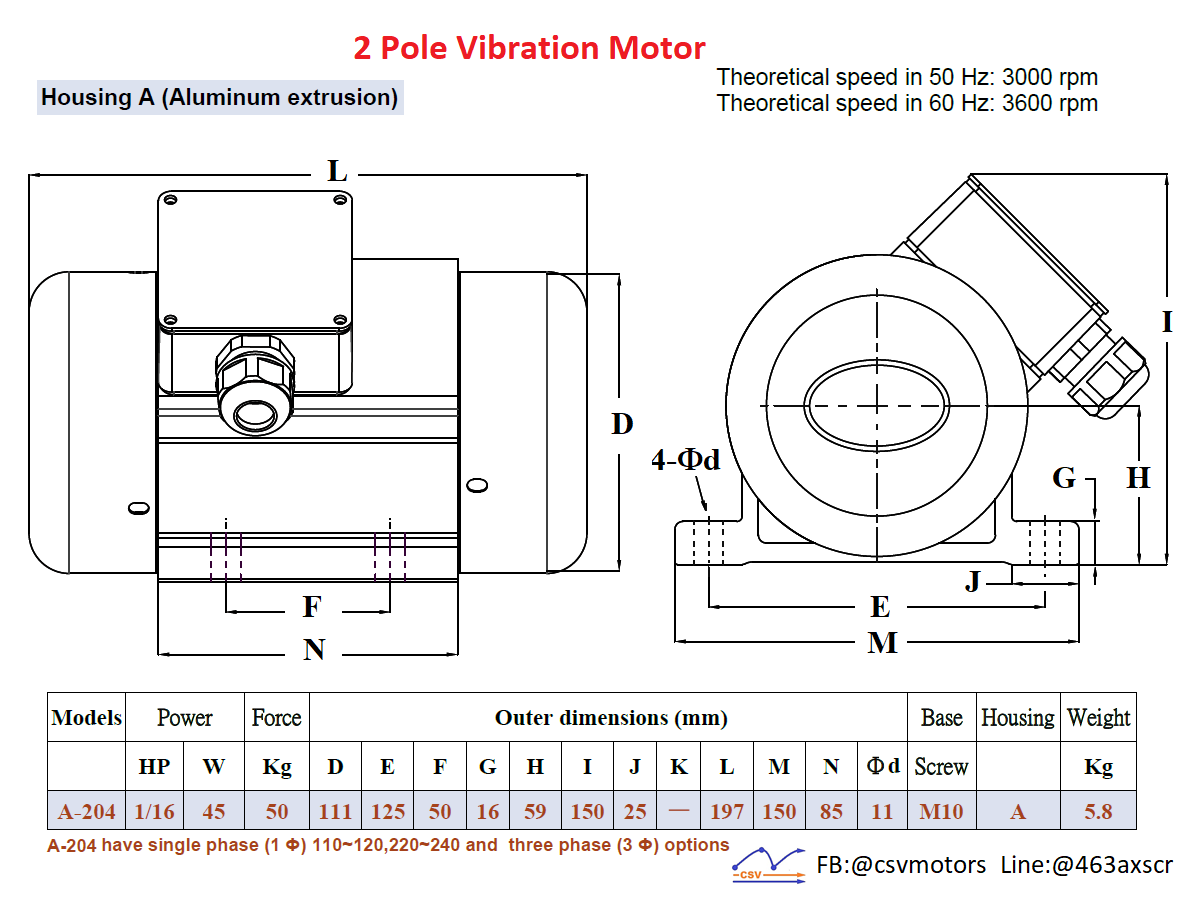

Size Chart


Models​ HP​ Vibrating force ​               Outer Dimensions (mm) Foot stand screw​

Weight (Kg)​
(Kg)​ D​

E​

F​

G​

H​

I​

J​

K​

L​

M​

N​

Φd​
A-204​ 1/16​ 50​ 111​ 125​ 50​ 16​ 59​ 150​ 25​ —​ 197​ 150​ 85​ 11​ M10​ 5.8​
