CSV Vibration Motor

Home>Products>Products>6 Pole>C-6220

Products

C-6220

Product Use

  • Preventing pipe clogging on medium and small size materials storage tanks.
  • Vertical vibrating coolers and conveyors for grainy materials.
  • Water or air type vibrating coolers.
  • Mold release machines, recirculating sandblasters, and cooling sifters in casting plants.
  • Vibrating sifters for raw material such as food or chemical (plastic, PCX granules).
  • Conveyor sifter machines used in mineral extraction plants and mines.
  • Medium distance conveyors and sifting machines.

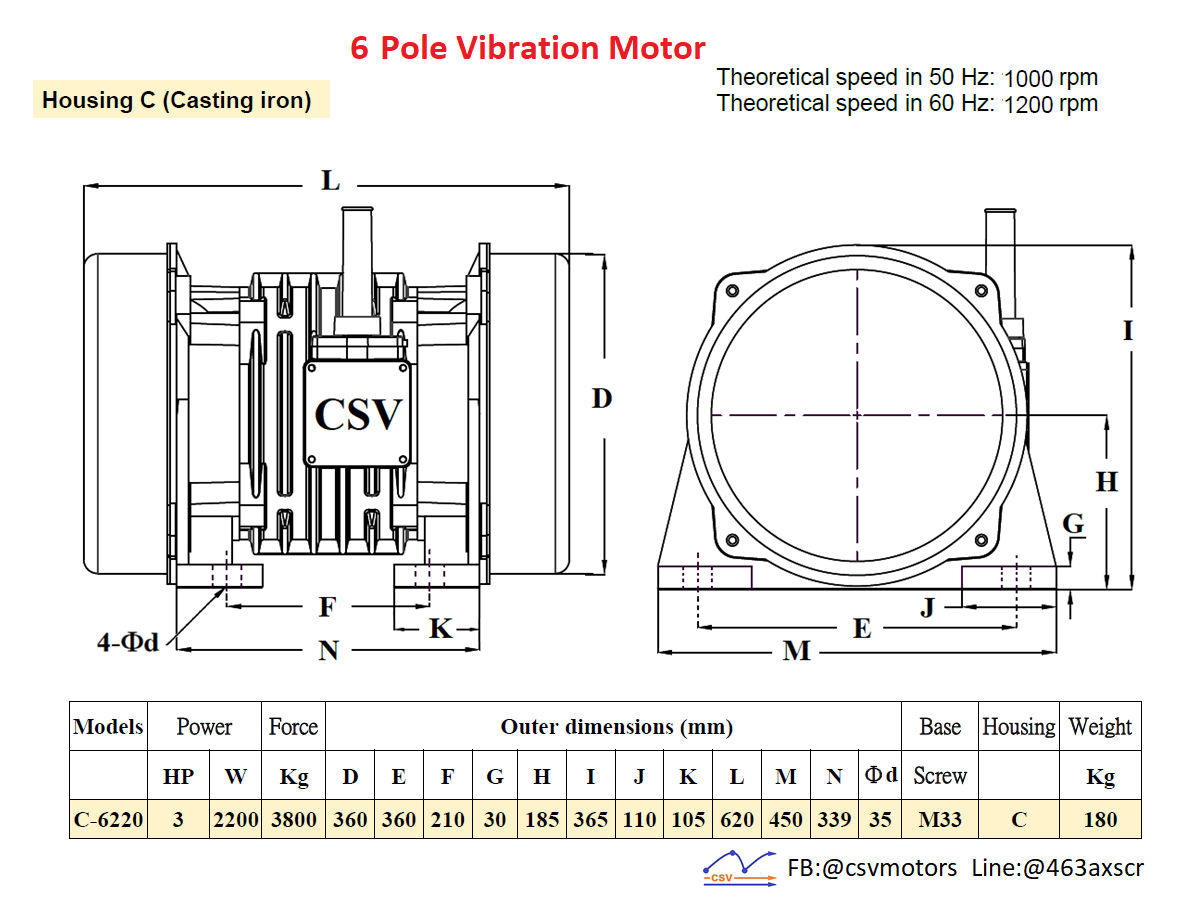

Size Chart



Vibrator Speed
Power supply frequency of 50 Hz: 16.7Hz (1000 rpm)
Power supply frequency of 60 Hz: 20Hz (1200 rpm)

Models HP Vibrating force                 Outer Dimensions (mm) Foot stand screw Weight (Kg)
(Kg) D E F G H I J K L M N Φd
C-6220 3 3800 360 360 210 30 185 365 110 105 620 450 339 35 M33 ---
